Epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has large periphery insulation creepage distance, withstanding dirtiness and dampness. Be suitable for measuring electric capacity, current and protective relaying in the power system of 36kV (Up to 40.5 kV).
Main technical parameter
1. Rated voltage: 30 kV or 33 kV or 34.5kV or 35kV etc
2. Rated secondary current:5Aor1A
3. Rated insulation level: 36/70/170 kV (40.5/95/200 kV)
4. Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
5. Other technical parameter pls see as follow
Single ratio
|
Rated current ratio (A) |
Accuracy classes combination |
Rated output (VA) |
FS |
ALF |
Rated short-time thermal current (kA/S) |
Rated dynamic current ( kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2（S） |
0.5 |
10P |
||||||
|
30-200/5 |
0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P |
10 15 |
15 20 |
20 25 |
5 (10) |
10 15 20 |
150I1n |
375I1n |
|
300/5 |
31.5 |
80 |
||||||
|
400/5 |
40 |
100 |
||||||
|
500/5 |
50 |
100 |
||||||
|
600/5 |
63 |
130 |
||||||
|
800/5 |
80 |
160 |
||||||
Double ratio
|
Rated current ratio (A) |
Accuracy classes combination |
Rated output (VA) |
FS |
ALF |
Rated short-time thermal current (kA/S) |
Rated dynamic current ( kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2（S） |
0.5 |
10P |
||||||
|
30-60/5 |
0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P |
10 15 |
15 20 |
20 25 |
5 (10) |
10 15 20 |
2 |
5 |
|
50-100/5 |
8 |
20 |
||||||
|
100-200/5 |
15 |
37.5 |
||||||
|
200-400/5 |
30 |
75 |
||||||
|
400-800/5 |
63 |
130 |
||||||
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

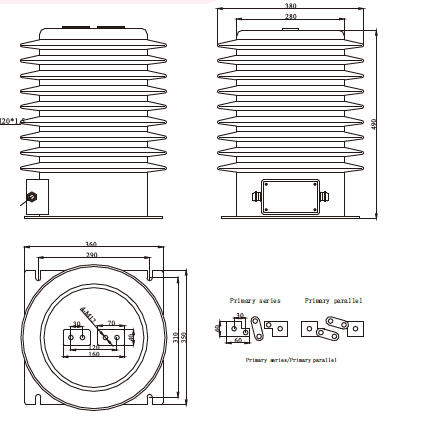

Outline drawing
