JDZXW-24TH voltage transformer, single-phase epoxy outdoor resin casting and fully enclosed construction, is used for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 24kV. The model can be operated under polluted conditions such as coastal areas, hoarfrost, UV radiation, humid tropical etc.
Technical parameter
|
Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy class or accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
|
12 |
0.12 |
0.2 |
30 |
800 |
24/50/125 |
|
0.5 |
60 |
||||
|
23/√3 |
0.11/√3 /0.11/3 |
0.2/6P(3P) |
20/100 |
600 |
|
|
0.5/6P(3P) |
50/100 |
||||
|
1/6P(3P) |
100/100 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

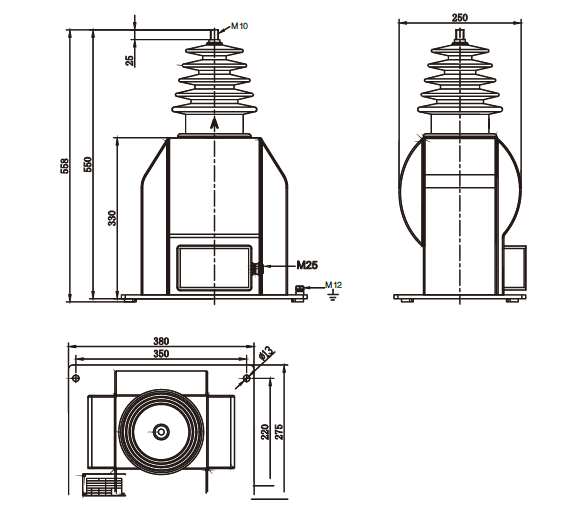

Outline drawing
