LXSC
CURRENT TRANSFORMER
□ Zero -Sequence Current transformer
LXSC adopts newly high permeability core with high measuring
accuracy. Secondary winding fully enclosed vacuum casting in
antiflaming plastic shell. It easily installed by making the primary
cable through the whole, applied to electrical system cable with
highest equipment voltage 0.72, functioning as the tool of current
metering , signal collection, relay protection. The current transformer
can be executed according to the standard IEC 61869-1:2007 and
IEC 61869-2:2012. Or IEC60044-1
Technical Data
1. Rated insulation level: 0.72/3/10kV
2. Rated primary current: up to 1500A
3. Rated secondary current: 5A or 1A
4. Installation Altitude : 2000m
Specification
Model
LXSZC-35
Rated
transformation ratio(A)
COSΦ=0.8
Accuracy class
and rated burden(VA)
10P5
10P10
10P20
20/5
2.5
2.5
2.5
30/5
40/5
…
100/5

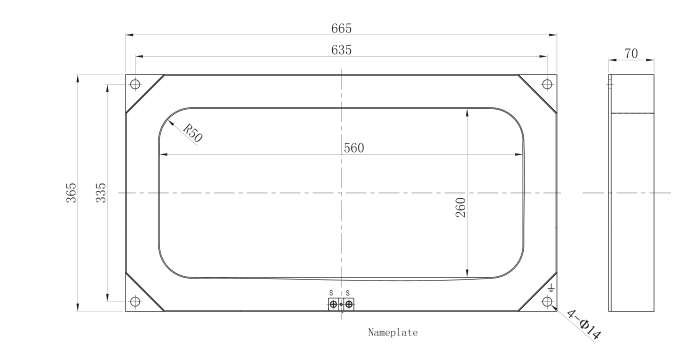

Outline
