FDGE8 -12/√3
DISCHARGE COIL
□ 12kV Indoor Single-Phase Epoxy Resin Type
Discharge coil connected to the high voltage shunt capacitor
banks in parallel, the capacitor residual charge discharge after
rapid relief from the power system, the residual voltage of the
capacitor reaches a predetermined value within the time
requirements and have the secondary winding for line
monitoring
Application
1、Capacitor banks
2、Power compensation
Technical Data
1、Installation site Indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with DL/T653-2009
IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated
Primary Voltage
(kV)
Rated secondary
Voltage
（kV）
Accuracy
classes combination
Rated output
(VA)
Thermal
limiting output
(VA)
Rated
insulation level(kV)
FDGE8-12/√3-1.7-1
12/√3
0.11/√3/0.11
0.5/6P
30/50
500
12/28/75

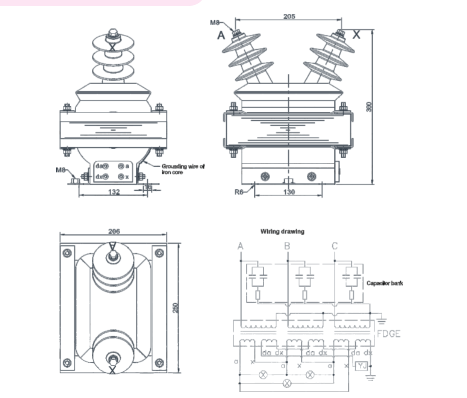

Outline
