JDZX11-36R
VOLTAGE TRANSFORMER
□ 36kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and single pole insulated VT, is widely
used indoor for measuring , electric energy and
protective relaying in the isolated neutral system with the
frequency 50Hz or 60Hz and highest voltage for equipment 36
kV (Up to 40.5kV), The transformers can be produced
according to the standards IEC60044-2:2003.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated
primary
voltage (kV)
Rated secondary
voltage (kV)
Accuracy
classes combination
Rated output
(VA)
Thermal
limiting current
(VA)
Rated
insulation level(kV)
JDZX11-36R
33/√3
0.11/√3
0.2
30
600
0.5
50
1
100
0.11/√3/0.11/3
0.2/6P(3P)
25/100
0.5/6P(3P)
50/100
0.11/√3/0.11/3√3/0.11/3333/0.11/√3/0.11/3/0.1/3
0.11/
0.2/0.5/6P(3P)
15/30/100
/0.11//0.11/3

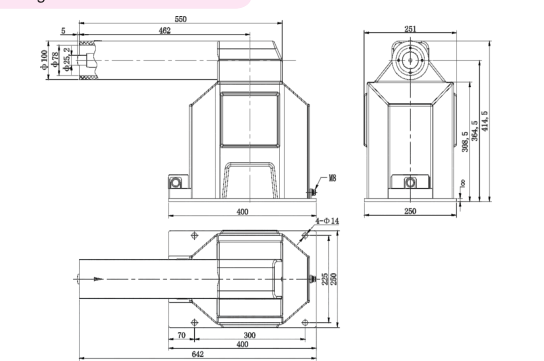

Outline
