JDZ11-17.5、24
VOLTAGE TRANSFORMER
□ 24kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and fully enclosed construction, is
used indoor for measuring , electric energy
and protective relaying the electric system with the
frequency 50Hz or 60Hz and highest voltage for
equipment 17.5 kV (Up to 24kV).
The product has the feature of high reliability, low
magnetism of core, large creepage distance of
external insulation and maintenance free etc.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary voltage(kV)
Rated secondary voltage(kV)
Accuracy class or accuracy classes
combination
Rated output
(VA)
Thermal limiting current(VA)
Rated insulation level
JDZ11-17.5
13.8
15
0.11
0.2
25
600
17.5/38/95
0.5
50
1
150
0.11/0.11
0.2/0.2
15/15
300/300
JDZ11-24
22
0.2/0.5
15/30
24/50/125
0.11/0.22
0.2/6P(3P)
15/600
600
0.5/6P(3P)
25/600

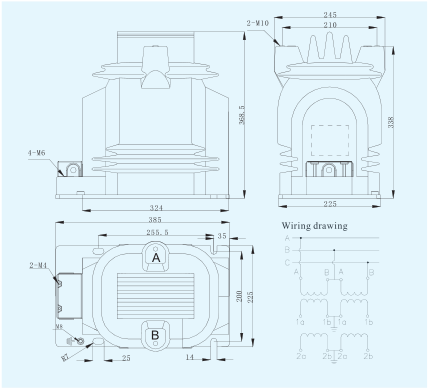

Outline
