JDZ9-12Q
VOLTAGE TRANSFORMER
12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and double pole insulated VT , is used indoor
switch cabinet for measuring voltage, electric energy and
protective relaying in single-phase or three-phase AC circuit with
the frequency 50Hz or 60Hz and highest voltage for equipement
12kV.
The product has the feature of high reliability, low magnetism of
core and maintenance free etc.
Technical Data
1、Installation site: indoor
2、Rated frequency: 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary
voltage (kV)
Rated secondary voltage (kV)
Accuracy
class or accuracy classes combination
Rated output
(VA)
Thermal
limiting current
(VA)
Rated
insulation level(kV)
JDZ9-12Q
11
0.11
0.2
25
500
12/28/75
0.5
50
1
80
0.11/0.11
0.2/0.2
15/15
250/250
0.2/0.5
15/25
0.11/0.22
0.2/6P(3P)
15/500
500
0.5/6P(3P)
25/500

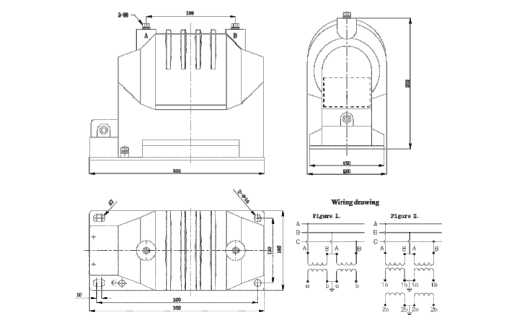

Outline
