LZZBJ6-12A 、 LZZBJ6-12B 、 LZZBJ6-12C
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support
construction, encloses primary & secondary windings and
annular core in the epoxy resin casting body. The product has
two secondary windings (one measuring winding and one
protective winding). It is widely used for measuring current,
electric energy and protective relaying in the power system
with the rated frequency 50Hz or 60Hz and highest voltage for
equipment 7.2/12kV.
Technical standard
1、Rated frequency: 50/60Hz
2、Installation site: Indoor
3、Rated insulation level: 12/28/75kV
4、Technical standard IEC 60044-1
(IEC 61869-1&2
LZZBJ6-12A 、 LZZBJ6-12B 、 LZZBJ6-12C
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support
construction, encloses primary & secondary windings and
annular core in the epoxy resin casting body. The product has
two secondary windings (one measuring winding and one
protective winding). It is widely used for measuring current,
electric energy and protective relaying in the power system
with the rated frequency 50Hz or 60Hz and highest voltage for
equipment 7.2/12kV.
Technical standard
1、Rated frequency: 50/60Hz
2、Installation site: Indoor
3、Rated insulation level: 12/28/75kV
4、Technical standard IEC 60044-1
(IEC 61869-1&2
Specification
|
Rated transformation ratio(A) |
Accuracy classes combination |
Rated output（VA） |
|||
|
Measuring |
Protective |
Protective |
|||
|
0.2(S) |
0.5 |
5P10 |
5P20 |
||
|
10~100/5 |
0.2 0.5 0.2/0.5 0.5/5P10 0.5/5P20 |
10 15 |
10 15 |
15 20 |
15 20 |
|
150/5 |
|||||
|
200/5 |
|||||
|
400/5 |
|||||
|
500/5 |
|||||
|
600/5 |
|||||
|
800/5 |
|||||
|
1000/5 |
|||||
|
1200~2500/5 |
|||||

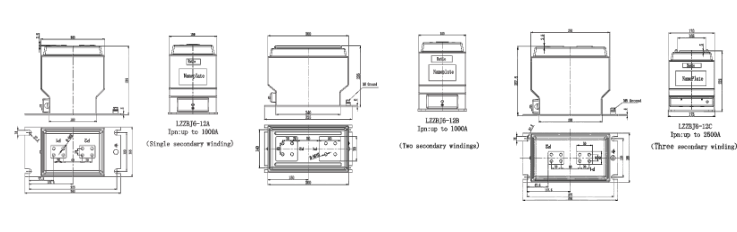

Outline
